Brake Disc
78BD5610-2
Catalog number:
Manufacturer:
ICER

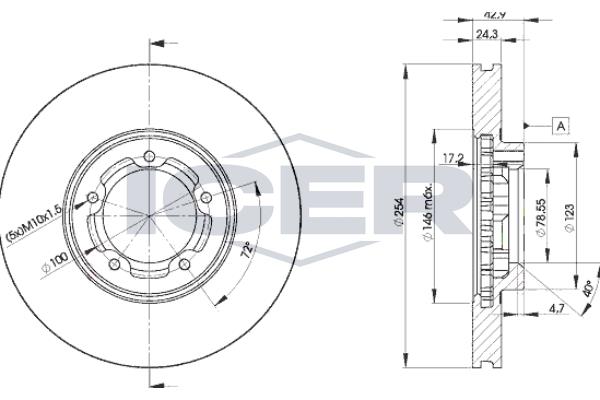

Brake Disc Thickness [mm] : 22,2
Outer diameter [mm] : 254
Brake Disc Type : Vented
Height [mm] : 43
Centering Diameter [mm] : 78,5
Bolt Hole Circle [mm] : 100
Axle Version : Front
Technical Information Number : 78BD5610-2
Test Mark : E1 90R-02C0074/0124
Test Mark : E1 90R-02C0452/0104
Test Mark : E1190R02C01049/52493
Diameter [mm] : 78,5
Thickness [mm] : 24
Minimum thickness [mm] : 22,2
Hole Arrangement/Number : 5
