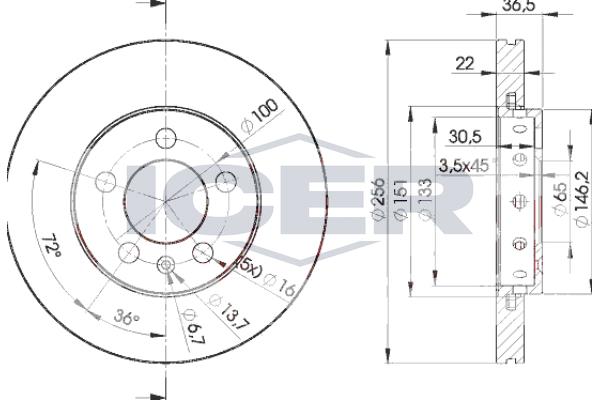

Brake Disc
78BD5602-2
Catalog number:
Manufacturer:
ICER
Brake Disc Thickness [mm] : 19
Outer diameter [mm] : 256
Brake Disc Type : Vented
Height [mm] : 36,5
Centering Diameter [mm] : 65
Bolt Hole Circle [mm] : 100
Axle Version : Front
Technical Information Number : 78BD5602-2
Test Mark : E1 90R-02C0091/0003
Test Mark : E1 90R-02C0433/0008
Test Mark : E1190R02C01049/52494
Diameter [mm] : 65
Thickness [mm] : 22
Minimum thickness [mm] : 19
Hole Arrangement/Number : 5
Weight [kg] : 10276,00
