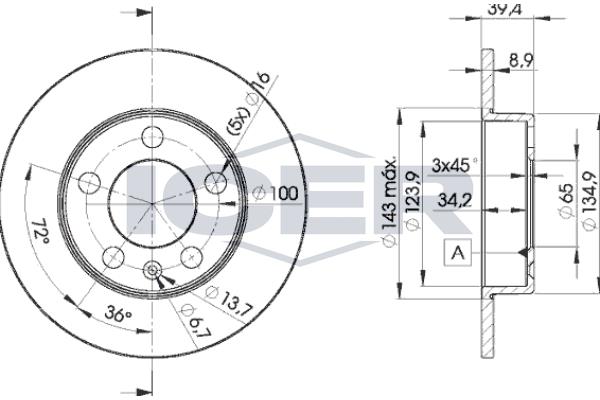

Brake Disc
78BD5601-2
Catalog number:
Manufacturer:
ICER
Brake Disc Thickness [mm] : 7
Outer diameter [mm] : 232
Brake Disc Type : solid
Height [mm] : 39
Centering Diameter [mm] : 65
Bolt Hole Circle [mm] : 100
Axle Version : Rear
Technical Information Number : 78BD5601-2
Test Mark : E1 90R-02C0100/0891
Test Mark : E1 90R-02C0415/0006
Test Mark : E1190R02C01049/52487
Diameter [mm] : 65
Thickness [mm] : 9
Minimum thickness [mm] : 7
Hole Arrangement/Number : 5
Weight [kg] : 5500,000
