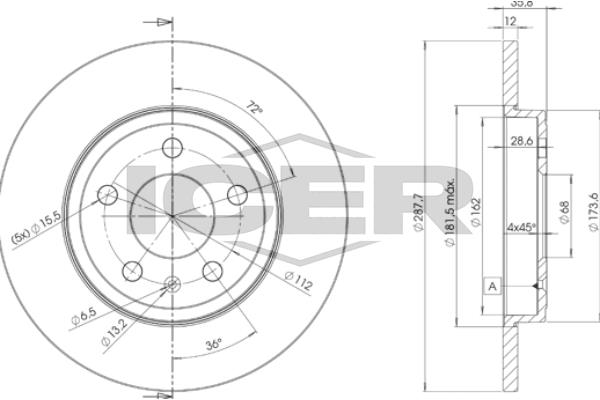

Brake Disc
78BD5316-2
Catalog number:
Manufacturer:
ICER
Brake Disc Thickness [mm] : 10
Outer diameter [mm] : 287,7
Brake Disc Type : solid
Height [mm] : 35,8
Centering Diameter [mm] : 68
Bolt Hole Circle [mm] : 112
Axle Version : Rear
Technical Information Number : 78BD5316-2
Test Mark : E1 90R-02C0100/1227
Test Mark : E1 90R-02C0415/0014
Test Mark : E1190R02C01049/43393
Diameter [mm] : 68
Thickness [mm] : 12
Minimum thickness [mm] : 10
Hole Arrangement/Number : 5
