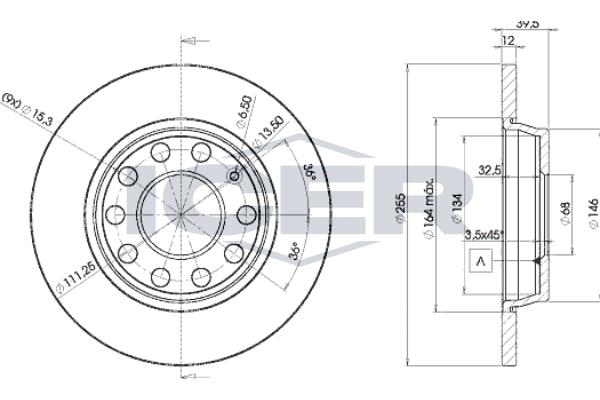

Brake Disc
78BD5309-2
Catalog number:
Manufacturer:
ICER
Brake Disc Thickness [mm] : 10
Outer diameter [mm] : 255
Brake Disc Type : solid
Height [mm] : 39,7
Centering Diameter [mm] : 68
Axle Version : Rear
Technical Information Number : 78BD5309-2
Test Mark : E1 90R-02C0100/0994
Test Mark : E1 90R-02C0415/0005
Test Mark : E1190R02C01049/52491
Diameter [mm] : 68
Thickness [mm] : 12
Minimum thickness [mm] : 10
Hole Arrangement/Number : 5
Weight [kg] : 7756,000
