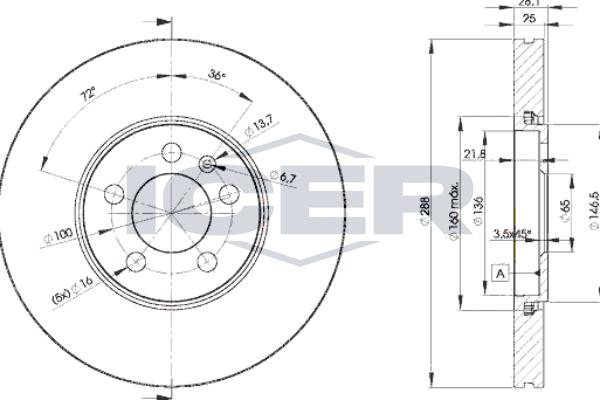

Brake Disc
78BD5302-2
Catalog number:
Manufacturer:
ICER
Brake Disc Thickness [mm] : 23
Outer diameter [mm] : 288
Brake Disc Type : Vented
Height [mm] : 28,2
Centering Diameter [mm] : 65
Bolt Hole Circle [mm] : 100
Axle Version : Front
Technical Information Number : 78BD5302-2
Test Mark : E1 90R-02C0289/0055
Test Mark : E1190R02C01049/52503
Diameter [mm] : 65
Thickness [mm] : 25
Minimum thickness [mm] : 23
Hole Arrangement/Number : 5
