Brake Disc
78BD5301-2
Catalog number:
Manufacturer:
ICER

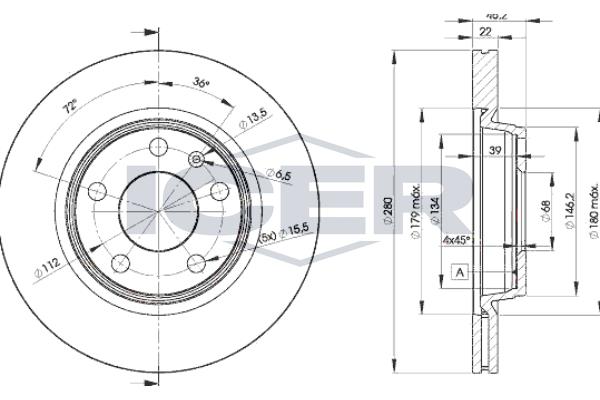

Brake Disc Thickness [mm] : 20
Outer diameter [mm] : 280
Brake Disc Type : Vented
Height [mm] : 46
Centering Diameter [mm] : 68
Bolt Hole Circle [mm] : 112
Axle Version : Front
Technical Information Number : 78BD5301-2
Test Mark : E1 90R-02C0074/0225
Test Mark : E1 90R-02C0452/0118
Diameter [mm] : 68
Thickness [mm] : 22
Minimum thickness [mm] : 20
Hole Arrangement/Number : 5
