Brake Disc
78BD5023-1
Catalog number:
Manufacturer:
ICER

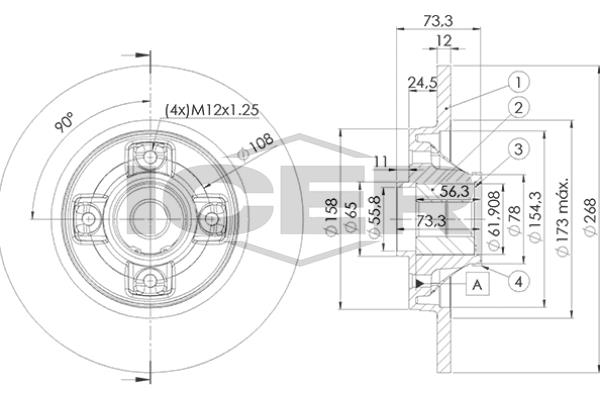

Brake Disc Thickness [mm] : 10,5
Outer diameter [mm] : 268
Brake Disc Type : solid
Height [mm] : 74
Centering Diameter [mm] : 55,2
Bolt Hole Circle [mm] : 108
Axle Version : Rear
Technical Information Number : 78BD5023-1
Supplementary Article/Supplementary Info 2 : with integrated magnetic sensor ring
Test Mark : E1 90R-02C0527/1753
Test Mark : E1 90R-02C0559/0131
Test Mark : E4 90R-02C0722/2597
Diameter [mm] : 55,2
Thickness [mm] : 12
Minimum thickness [mm] : 10,5
Hole Arrangement/Number : 4
Weight [kg] : 6836,000
