Brake Disc
78BD4755-2
Catalog number:
Manufacturer:
ICER

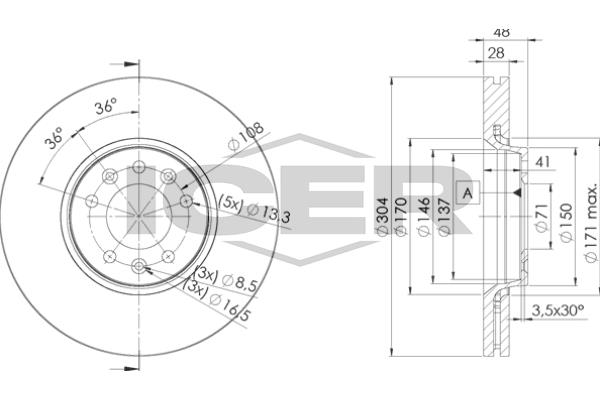

Brake Disc Thickness [mm] : 26
Outer diameter [mm] : 304
Brake Disc Type : Vented
Height [mm] : 48
Centering Diameter [mm] : 71
Bolt Hole Circle [mm] : 108
Axle Version : Front
Technical Information Number : 78BD4755-2
Test Mark : E1 90R-02C0289/1468
Test Mark : E1 90R-02C0433/0076
Test Mark : E1190R02C01049/52499
Diameter [mm] : 71
Thickness [mm] : 28
Minimum thickness [mm] : 26
Hole Arrangement/Number : 5
