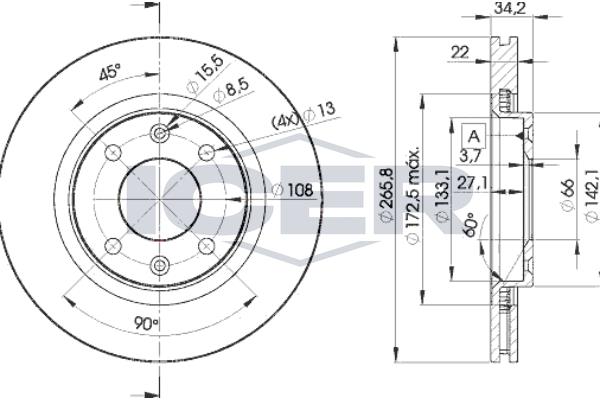

Brake Disc
78BD4750-2
Catalog number:
Manufacturer:
ICER
Brake Disc Thickness [mm] : 20
Outer diameter [mm] : 266
Brake Disc Type : Vented
Height [mm] : 34
Centering Diameter [mm] : 66
Bolt Hole Circle [mm] : 108
Axle Version : Front
Technical Information Number : 78BD4750-2
Test Mark : E1 90R-02C0289/0040
Test Mark : E1 90R-02C0433/0013
Test Mark : E1190R02C01049/43388
Diameter [mm] : 66
Thickness [mm] : 22
Minimum thickness [mm] : 20
Hole Arrangement/Number : 4
