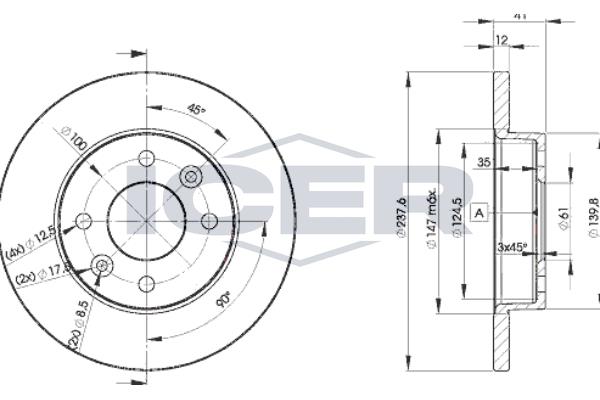

Brake Disc
78BD4705-2
Catalog number:
Manufacturer:
ICER
Brake Disc Thickness [mm] : 10,5
Outer diameter [mm] : 238
Brake Disc Type : solid
Height [mm] : 41
Centering Diameter [mm] : 61
Bolt Hole Circle [mm] : 100
Axle Version : Front
Technical Information Number : 78BD4705-2
Test Mark : E1 90R-02C0100/0373
Test Mark : E1 90R-02C0415/0002
Diameter [mm] : 61
Thickness [mm] : 12
Minimum thickness [mm] : 10,5
Hole Arrangement/Number : 4
Weight [kg] : 7240,000
