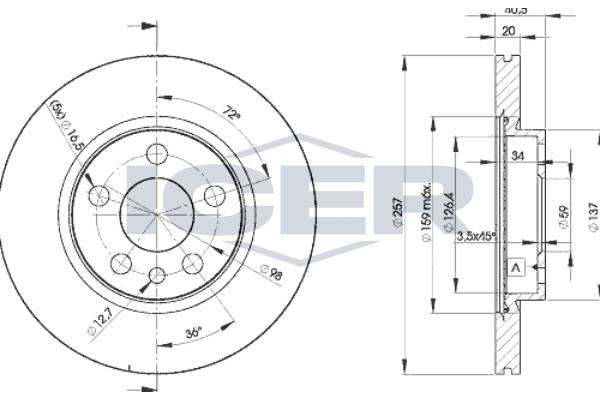

Brake Disc
78BD4683-2
Catalog number:
Manufacturer:
ICER
Brake Disc Thickness [mm] : 18,2
Outer diameter [mm] : 257
Brake Disc Type : Vented
Height [mm] : 40,5
Centering Diameter [mm] : 59
Bolt Hole Circle [mm] : 98
Axle Version : Front
Technical Information Number : 78BD4683-2
Test Mark : E1 90R-02C0339/1054
Test Mark : E1 90R-02C0538/0116
Test Mark : E4 90R-02C0722/2584
Diameter [mm] : 59
Thickness [mm] : 20
Minimum thickness [mm] : 18,2
Hole Arrangement/Number : 5
Weight [kg] : 9856,000
