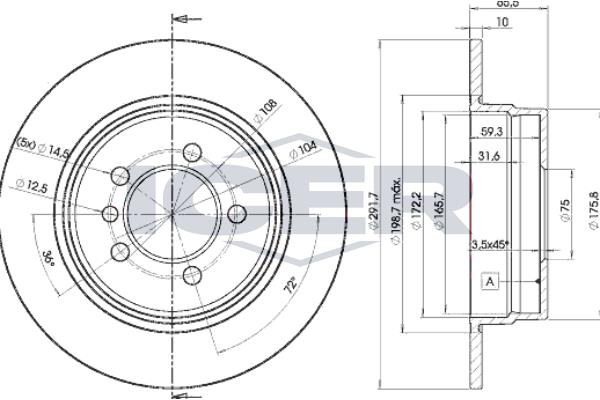

Brake Disc
78BD4647-2
Catalog number:
Manufacturer:
ICER
Brake Disc Thickness [mm] : 8,4
Outer diameter [mm] : 280
Brake Disc Type : solid
Height [mm] : 65,6
Centering Diameter [mm] : 75
Bolt Hole Circle [mm] : 108
Axle Version : Rear
Technical Information Number : 78BD4647-2
Test Mark : E1 90R-02C0241/1080
Test Mark : E1 90R-02C0453/0072
Test Mark : E4 90R-02C0722/2585
Diameter [mm] : 75
Thickness [mm] : 10
Minimum thickness [mm] : 8,4
Hole Arrangement/Number : 5
Weight [kg] : 9344,000
