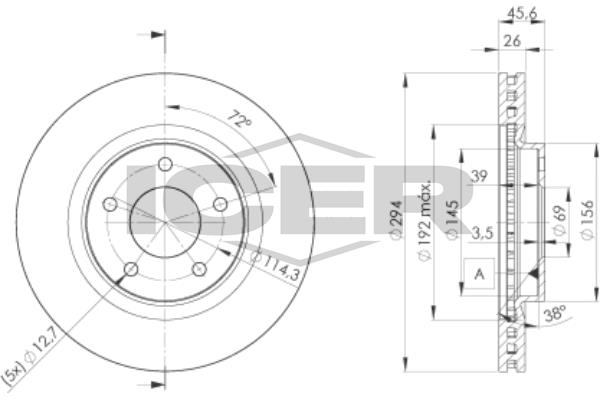

Brake Disc
78BD4644-2
Catalog number:
Manufacturer:
ICER
Brake Disc Thickness [mm] : 24,4
Outer diameter [mm] : 294
Brake Disc Type : Vented
Height [mm] : 45,7
Centering Diameter [mm] : 69
Bolt Hole Circle [mm] : 114,3
Axle Version : Front
Technical Information Number : 78BD4644-2
Test Mark : E1 90R-02C0339/1232
Test Mark : E1 90R-02C0538/0082
Diameter [mm] : 69
Thickness [mm] : 26,3
Minimum thickness [mm] : 24,4
Hole Arrangement/Number : 5
Weight [kg] : 13640,00
