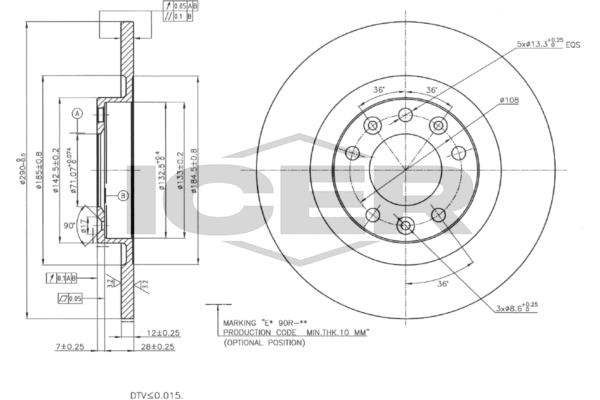

Brake Disc
78BD4614-2
Catalog number:
Manufacturer:
ICER
Brake Disc Thickness [mm] : 10
Outer diameter [mm] : 290
Brake Disc Type : solid
Height [mm] : 35
Centering Diameter [mm] : 71,1
Bolt Hole Circle [mm] : 108
Axle Version : Rear
Technical Information Number : 78BD4614-2
Test Mark : E1 90R-02C0415/0014
Diameter [mm] : 71,1
Thickness [mm] : 12
Minimum thickness [mm] : 10
Hole Arrangement/Number : 5
Weight [kg] : 9792,000
