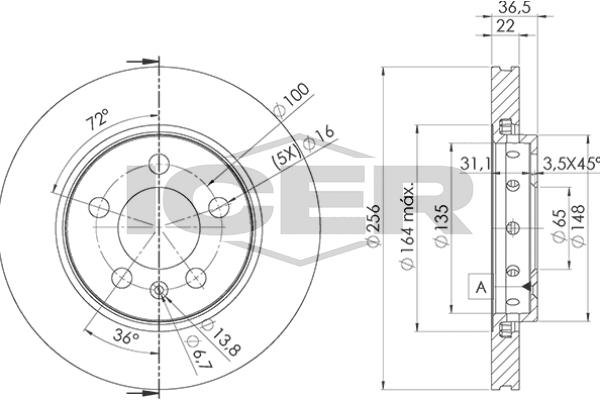

Brake Disc
78BD4092-2
Catalog number:
Manufacturer:
ICER
Brake Disc Thickness [mm] : 20
Outer diameter [mm] : 256
Brake Disc Type : Vented
Height [mm] : 37
Centering Diameter [mm] : 65
Bolt Hole Circle [mm] : 100
Axle Version : Rear
Technical Information Number : 78BD4092-2
Test Mark : E1 90R-02C0091/1111
Test Mark : E1 90R-02C0433/0059
Diameter [mm] : 65
Thickness [mm] : 22
Minimum thickness [mm] : 20
Hole Arrangement/Number : 5
Weight [kg] : 8916,000
