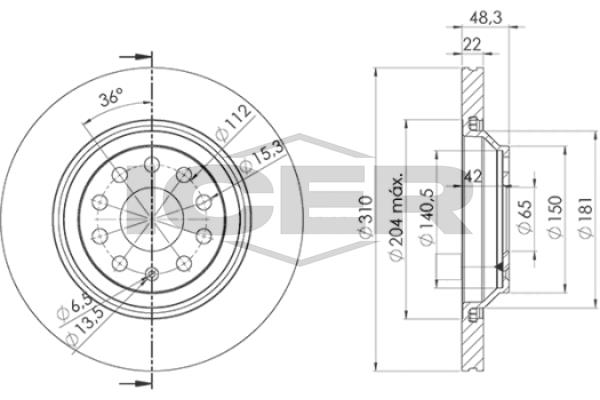

Brake Disc
78BD4082-2
Catalog number:
Manufacturer:
ICER
Brake Disc Thickness [mm] : 20
Outer diameter [mm] : 310
Brake Disc Type : Vented
Height [mm] : 48,5
Centering Diameter [mm] : 65
Bolt Hole Circle [mm] : 112
Axle Version : Rear
Technical Information Number : 78BD4082-2
Test Mark : E1 90R-02C0289/0576
Test Mark : E1190R02C01049/52501
Diameter [mm] : 65
Thickness [mm] : 22
Minimum thickness [mm] : 20
Hole Arrangement/Number : 5
