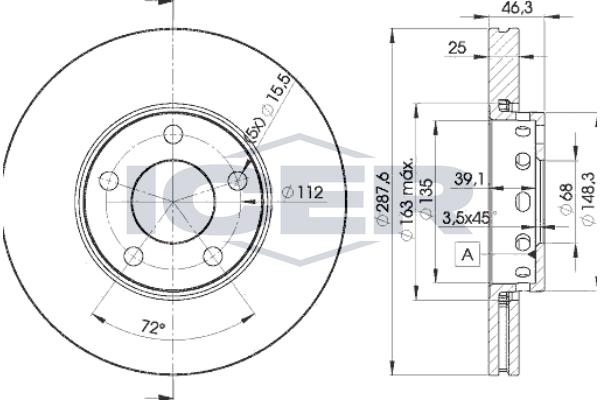

Brake Disc
78BD4063-2
Catalog number:
Manufacturer:
ICER
Brake Disc Thickness [mm] : 23
Outer diameter [mm] : 288
Brake Disc Type : Vented
Height [mm] : 46,2
Centering Diameter [mm] : 68
Bolt Hole Circle [mm] : 112
Axle Version : Front
Technical Information Number : 78BD4063-2
Test Mark : E1 90R-02C0289/0896
Test Mark : E1 90R-02C0433/0007
Test Mark : E1190R02C01049/52503
Diameter [mm] : 68
Thickness [mm] : 25
Minimum thickness [mm] : 23
Hole Arrangement/Number : 9
