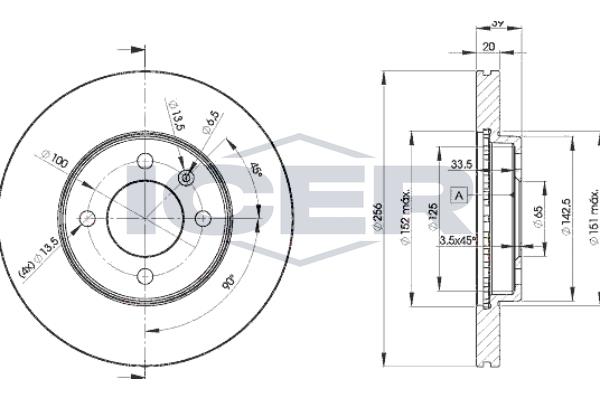

Brake Disc
78BD3790-2
Catalog number:
Manufacturer:
ICER
Brake Disc Thickness [mm] : 18
Outer diameter [mm] : 256
Brake Disc Type : Vented
Height [mm] : 38,7
Centering Diameter [mm] : 65
Bolt Hole Circle [mm] : 100
Axle Version : Front
Technical Information Number : 78BD3790-2
Test Mark : E1 90R-02C0074/0044
Test Mark : E1 90R-02C0452/0026
Test Mark : E1190R02C01049/52492
Diameter [mm] : 65
Thickness [mm] : 20
Minimum thickness [mm] : 18
Hole Arrangement/Number : 4
Weight [kg] : 8976,000
