Brake Disc
78BD3637-2
Catalog number:
Manufacturer:
ICER

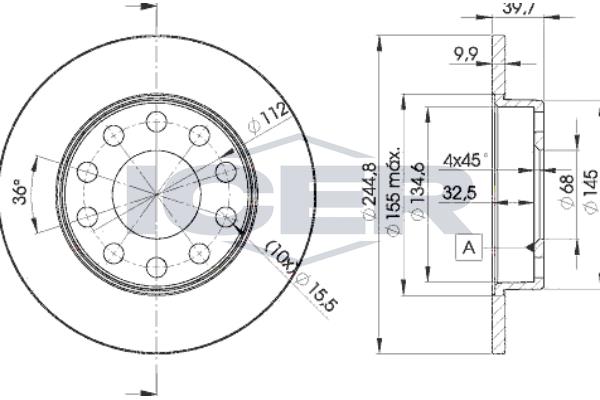

Brake Disc Thickness [mm] : 8
Outer diameter [mm] : 245
Brake Disc Type : solid
Height [mm] : 39,8
Centering Diameter [mm] : 68
Bolt Hole Circle [mm] : 112
Axle Version : Rear
Technical Information Number : 78BD3637-2
Test Mark : E1 90R-02C0100/0094
Test Mark : E1 90R-02C0415/0049
Test Mark : E1190R02C01049/43386
Diameter [mm] : 68
Thickness [mm] : 10
Minimum thickness [mm] : 8
Hole Arrangement/Number : 10
Weight [kg] : 6680,000
