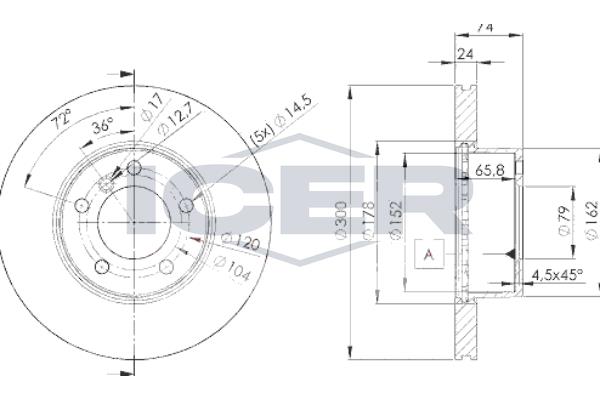

Brake Disc
78BD3405-2
Catalog number:
Manufacturer:
ICER
Brake Disc Thickness [mm] : 22,4
Outer diameter [mm] : 300
Brake Disc Type : Vented
Height [mm] : 74
Centering Diameter [mm] : 79
Bolt Hole Circle [mm] : 120
Axle Version : Front
Technical Information Number : 78BD3405-2
Test Mark : E1 90R-02C0074/0360
Test Mark : E1 90R-02C0452/0127
Test Mark : E1190R02C01049/52381
Diameter [mm] : 79
Thickness [mm] : 24
Minimum thickness [mm] : 22,4
Hole Arrangement/Number : 5
