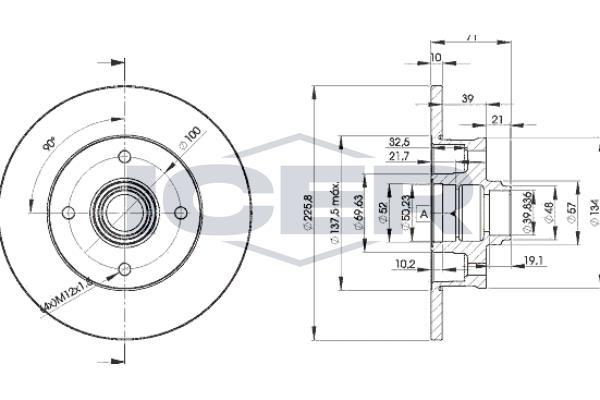

Brake Disc
78BD3393-1
Catalog number:
Manufacturer:
ICER
Brake Disc Thickness [mm] : 8
Outer diameter [mm] : 226
Brake Disc Type : solid
Height [mm] : 71
Centering Diameter [mm] : 40
Bolt Hole Circle [mm] : 100
Axle Version : Rear
Technical Information Number : 78BD3393-1
Test Mark : E1190R02C01049/53359
Diameter [mm] : 40
Thickness [mm] : 10
Minimum thickness [mm] : 8
Hole Arrangement/Number : 4
Weight [kg] : 4588,000
