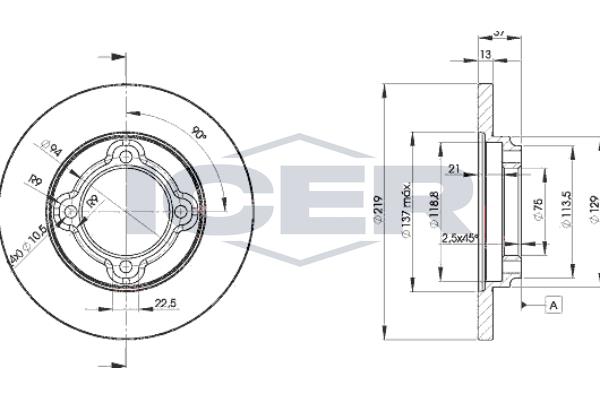

Brake Disc
78BD3252-2
Catalog number:
Manufacturer:
ICER
Brake Disc Thickness [mm] : 11
Outer diameter [mm] : 219
Brake Disc Type : solid
Height [mm] : 37
Centering Diameter [mm] : 75
Bolt Hole Circle [mm] : 94
Axle Version : Front
Technical Information Number : 78BD3252-2
Diameter [mm] : 75
Thickness [mm] : 13
Minimum thickness [mm] : 11
Hole Arrangement/Number : 4
Weight [kg] : 6180,000
