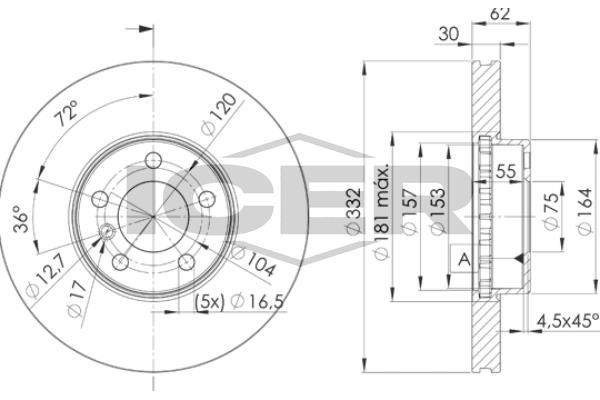

Brake Disc
78BD1985-2
Catalog number:
Manufacturer:
ICER
Brake Disc Thickness [mm] : 28,4
Outer diameter [mm] : 332
Brake Disc Type : Vented
Height [mm] : 62
Centering Diameter [mm] : 75
Bolt Hole Circle [mm] : 120
Axle Version : Front
Technical Information Number : 78BD1985-2
Test Mark : E1 90R-02C0074/1445
Test Mark : E1190R02C01049/52399
Diameter [mm] : 75
Thickness [mm] : 30
Minimum thickness [mm] : 28,4
Hole Arrangement/Number : 5
Weight [kg] : 22576,00
