Brake Disc
78BD1973-2
Catalog number:
Manufacturer:
ICER

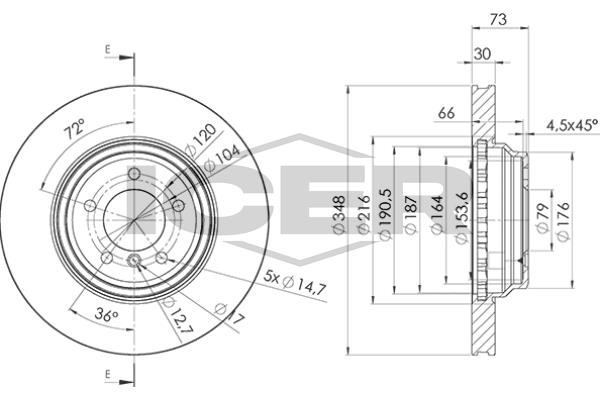

Brake Disc Thickness [mm] : 28
Outer diameter [mm] : 348
Brake Disc Type : Vented
Height [mm] : 73
Centering Diameter [mm] : 79
Bolt Hole Circle [mm] : 120
Axle Version : Front
Technical Information Number : 78BD1973-2
Test Mark : E1 90R-02C0074/1565
Test Mark : E1 90R-02C0452/0091
Diameter [mm] : 79
Thickness [mm] : 30
Minimum thickness [mm] : 28
Hole Arrangement/Number : 5
