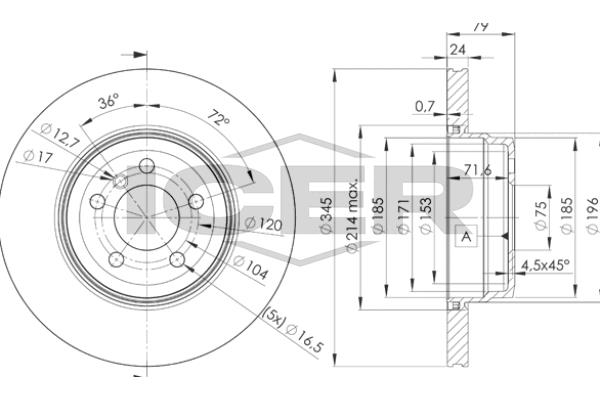

Brake Disc
78BD1971-2
Catalog number:
Manufacturer:
ICER
Brake Disc Thickness [mm] : 22,4
Outer diameter [mm] : 345
Brake Disc Type : Vented
Height [mm] : 79
Centering Diameter [mm] : 75
Bolt Hole Circle [mm] : 120
Axle Version : Rear
Technical Information Number : 78BD1971-2
Test Mark : E1 90R-02C0438/1463
Test Mark : E1190R02C01049/52408
Diameter [mm] : 75
Thickness [mm] : 24
Minimum thickness [mm] : 22,4
Hole Arrangement/Number : 5
Weight [kg] : 19270,00
