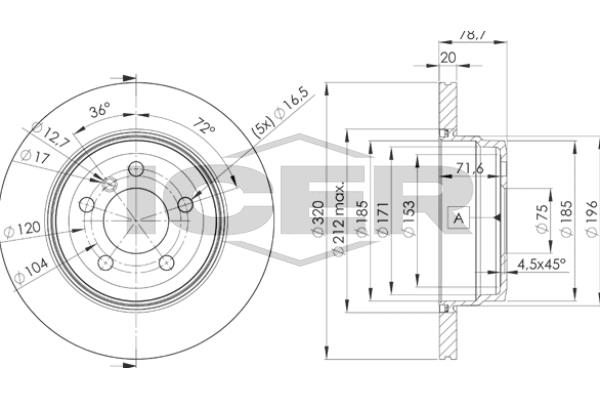

Brake Disc
78BD1970-2
Catalog number:
Manufacturer:
ICER
Brake Disc Thickness [mm] : 18
Outer diameter [mm] : 320
Brake Disc Type : Vented
Height [mm] : 78,7
Centering Diameter [mm] : 75
Bolt Hole Circle [mm] : 120
Axle Version : Rear
Technical Information Number : 78BD1970-2
Test Mark : E1 90R-02C0438/1460
Test Mark : E1190R02C01049/52393
Diameter [mm] : 75
Thickness [mm] : 20
Minimum thickness [mm] : 18
Hole Arrangement/Number : 5
Weight [kg] : 15616,00
