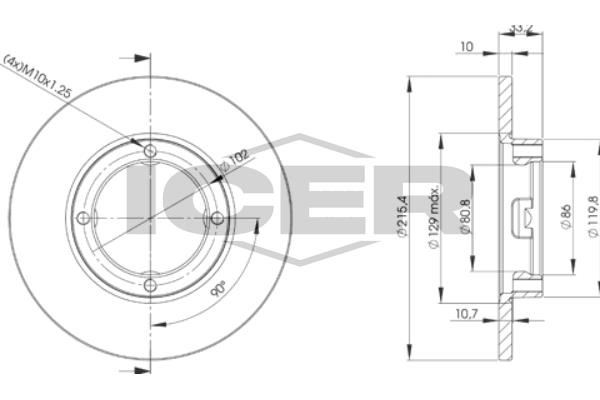

Brake Disc
78BD1160-2
Catalog number:
Manufacturer:
ICER
Brake Disc Thickness [mm] : 8
Outer diameter [mm] : 215,5
Brake Disc Type : solid
Height [mm] : 33
Centering Diameter [mm] : 86
Bolt Hole Circle [mm] : 102
Axle Version : Front
Technical Information Number : 78BD1160-2
Diameter [mm] : 86
Thickness [mm] : 10
Minimum thickness [mm] : 8
Hole Arrangement/Number : 4
Weight [kg] : 5460,000
