Brake Disc
78BD1073-2
Catalog number:
Manufacturer:
ICER

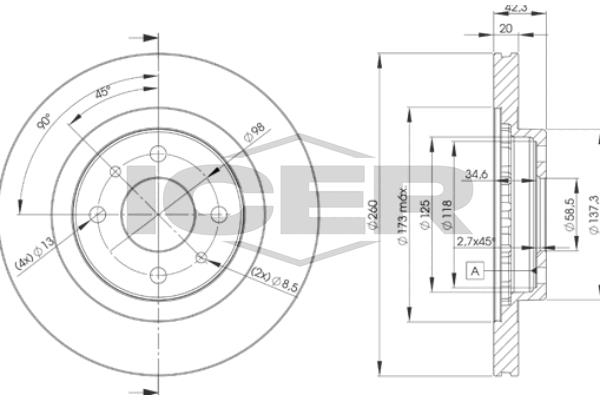

Brake Disc Thickness [mm] : 18
Outer diameter [mm] : 260
Brake Disc Type : Vented
Height [mm] : 42,5
Centering Diameter [mm] : 58,5
Bolt Hole Circle [mm] : 98
Axle Version : Front
Technical Information Number : 78BD1073-2
Test Mark : E1 90R-02C0074/0245
Diameter [mm] : 58,5
Thickness [mm] : 20
Minimum thickness [mm] : 18
Hole Arrangement/Number : 4
Weight [kg] : 9280,000
