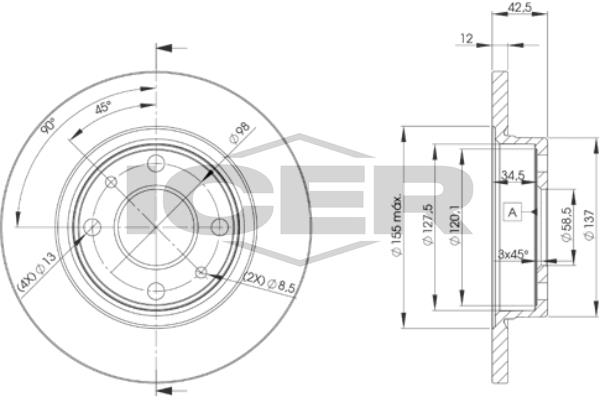

Brake Disc
78BD1071-2
Catalog number:
Manufacturer:
ICER
Brake Disc Thickness [mm] : 10,8
Outer diameter [mm] : 239
Brake Disc Type : solid
Height [mm] : 42,6
Centering Diameter [mm] : 58,5
Bolt Hole Circle [mm] : 98
Axle Version : Front
Technical Information Number : 78BD1071-2
Diameter [mm] : 58,5
Thickness [mm] : 12
Minimum thickness [mm] : 10,8
Hole Arrangement/Number : 4
Weight [kg] : 7560,000
