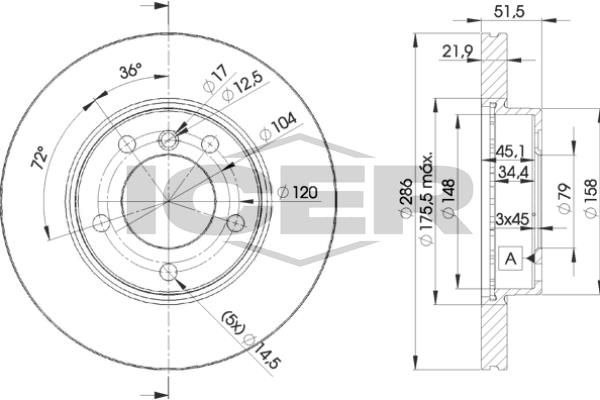

Brake Disc
78BD0674-2
Catalog number:
Manufacturer:
ICER
Brake Disc Thickness [mm] : 20,4
Outer diameter [mm] : 286
Brake Disc Type : Vented
Height [mm] : 51,6
Centering Diameter [mm] : 79
Bolt Hole Circle [mm] : 120
Axle Version : Front
Technical Information Number : 78BD0674-2
Test Mark : E1 90R-02C0074/0079
Test Mark : E1 90R-02C0452/0083
Diameter [mm] : 79
Thickness [mm] : 22
Minimum thickness [mm] : 20,4
Hole Arrangement/Number : 5
