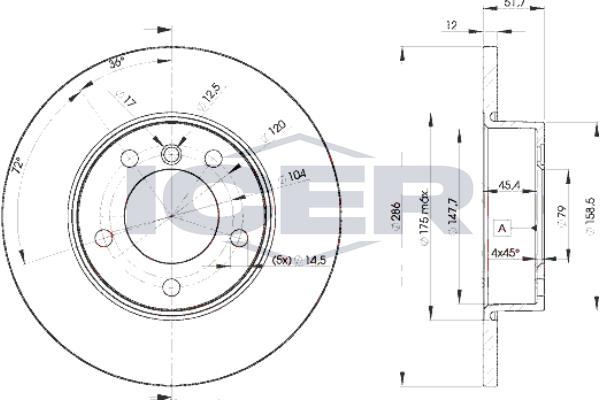

Brake Disc
78BD0673-2
Catalog number:
Manufacturer:
ICER
Brake Disc Thickness [mm] : 10,4
Outer diameter [mm] : 286
Brake Disc Type : solid
Height [mm] : 51,5
Centering Diameter [mm] : 79
Bolt Hole Circle [mm] : 120
Axle Version : Front
Technical Information Number : 78BD0673-2
Test Mark : E1 90R-02C0100/1091
Test Mark : E1 90R-02C0415/0014
Test Mark : E1190R02C01049/43393
Diameter [mm] : 79
Thickness [mm] : 12
Minimum thickness [mm] : 10,4
Hole Arrangement/Number : 5
Weight [kg] : 10580,00
