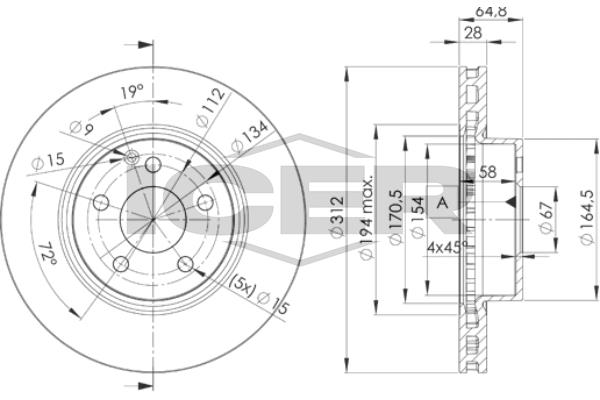

Brake Disc
78BD0414-2
Catalog number:
Manufacturer:
ICER
Brake Disc Thickness [mm] : 25,4
Outer diameter [mm] : 312
Brake Disc Type : Vented
Height [mm] : 64,8
Centering Diameter [mm] : 67
Bolt Hole Circle [mm] : 112
Axle Version : Front
Technical Information Number : 78BD0414-2
Test Mark : E1 90R-02C0074/1582
Test Mark : E1 90R-02C0452/0085
Diameter [mm] : 67
Thickness [mm] : 28
Minimum thickness [mm] : 25,4
Hole Arrangement/Number : 5
