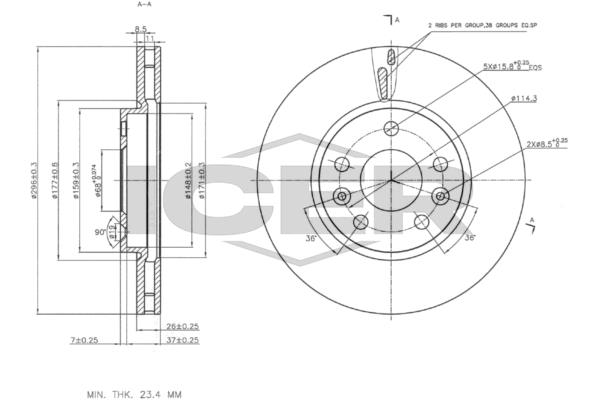

Brake Disc
78BD0036-2
Catalog number:
Manufacturer:
ICER
Brake Disc Thickness [mm] : 23,4
Outer diameter [mm] : 296
Brake Disc Type : Vented
Height [mm] : 44
Centering Diameter [mm] : 68
Bolt Hole Circle [mm] : 114,3
Axle Version : Front & Rear
Technical Information Number : 78BD0036-2
Diameter [mm] : 68
Thickness [mm] : 26
Minimum thickness [mm] : 23,4
Hole Arrangement/Number : 5
