Brake Disc

228 884 Catalog number:

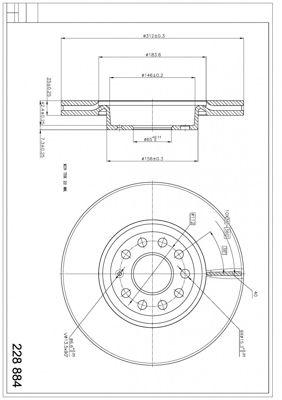

Manufacturer: HART Brake Disc Type : Vented Outer diameter [mm] : 312 Brake Disc Thickness [mm] : 25 Height [mm] : 49,9 Number of Holes : 9 Minimum thickness [mm] : 22 Centering Diameter [mm] : 65 Bolt Hole Circle [mm] : 112 Surface : Oiled

Additional information

Product description Brake Disc BMW

Brake Disc Type : Vented Outer diameter [mm] : 312 Brake Disc Thickness [mm] : 25 Height [mm] : 49,9 Number of Holes : 9 Minimum thickness [mm] : 22 Centering Diameter [mm] : 65 Bolt Hole Circle [mm] : 112 Surface : Oiled

Suitable vehicles

AUDI

SEAT

SKODA

VW

BUICK

CUPRA

Zastosowanie własne

OEM numbers

AUDI: 1K0 615 301 AA AUDI: 5C0 615 301 B AUDI: 5Q0 615 301 F CUPRA: 5Q0 615 301 F SEAT: 1K0 615 301 AA SEAT: 5C0 615 301 B SEAT: 5Q0 615 301 F SEAT: JZW 615 301 H SKODA: 5Q0 615 301 F SKODA: 5C0 615 301 B SKODA: JZW 615 301 H SKODA: 1K0 615 301 AA VW: 5Q0 615 301 F VW: 5C0 615 301 B VW: 5C0 615 301 E VW: 1K0 615 301 AA VW: JZW 615 301 H VW (FAW): L3CD615301 VW (FAW): 1K0 615 301 VW (SVW): 1KD 615 301 D
