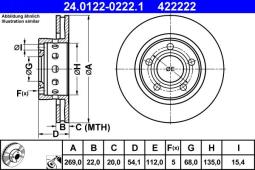

Brake Disc
24.0122-0222.1
Catalog number:
Manufacturer:
ATE
Outer diameter [mm] : 269,0
Brake Disc Thickness [mm] : 22,0
Minimum thickness [mm] : 20,0
Brake Disc Type : Vented
Machining : High-carbon
Surface : Coated
Number of Holes : 5
MAPP code available
Bolt Hole Circle [mm] : 112,0
Height [mm] : 54,1
Centering Diameter [mm] : 68,0
Inner diameter [mm] : 135,0
Bore Diameter [mm] : 15,4
Test Mark : E1 90R-02C0118/0555
