Brake Disc
ATE24.0116-0116.2
Catalog number:
Manufacturer:
ATE

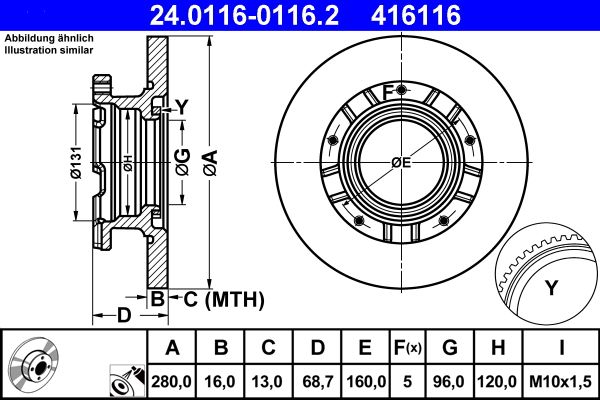

Outer diameter [mm] : 280,0
Brake Disc Thickness [mm] : 16,0
Minimum thickness [mm] : 13,0
Brake Disc Type : solid
Supplementary Article/Supplementary Info 2 : with ABS sensor ring
Surface : Coated
Number of Holes : 5
Bolt Hole Circle [mm] : 160,0
Height [mm] : 68,7
Centering Diameter [mm] : 96,0
Inner diameter [mm] : 120,0
Thread Size : M10x1,5
MAPP code available
Test Mark : E1 90R-02C0165/0946
