Brake Disc

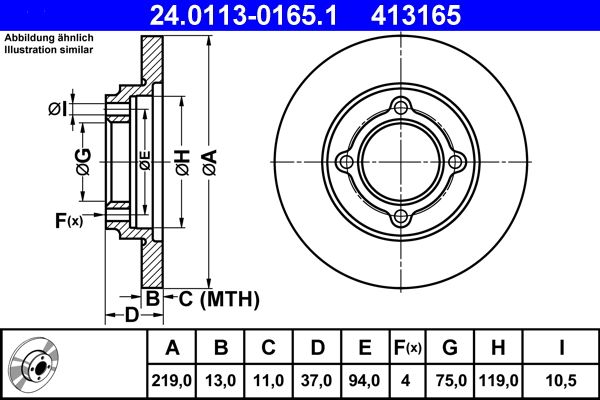

24.0113-0165.1
Catalog number:
Manufacturer:
ATE
Outer diameter [mm] : 219,0
Brake Disc Thickness [mm] : 13,0
Minimum thickness [mm] : 11,0
Brake Disc Type : solid
Number of Holes : 4
MAPP code available
Bolt Hole Circle [mm] : 94,0
Height [mm] : 37,0
Centering Diameter [mm] : 75,0
Inner diameter [mm] : 119,0
Bore Diameter [mm] : 10,5
