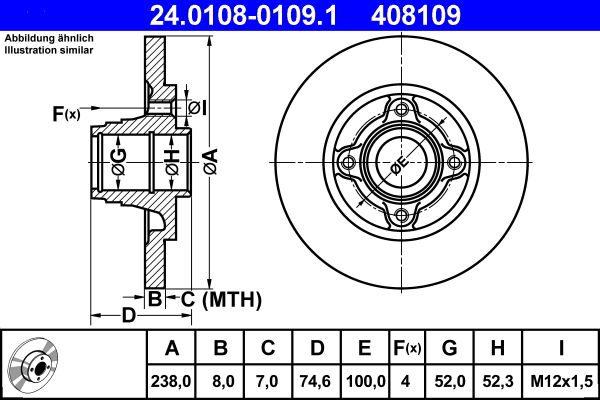

Brake Disc
24.0108-0109.1
Catalog number:
Manufacturer:
ATE
Outer diameter [mm] : 238,0
Brake Disc Thickness [mm] : 8,0
Minimum thickness [mm] : 7,0
Brake Disc Type : solid
Number of Holes : 4
Bolt Hole Circle [mm] : 100,0
Height [mm] : 74,7
Centering Diameter [mm] : 52,0
Inner diameter [mm] : 52,3
Thread Size : M12x1,5
MAPP code available
