Brake Disc

ATE24.0126-0134.1 Catalog number:

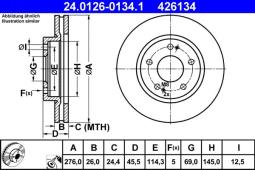

Manufacturer: ATE Outer diameter [mm] : 276,0 Brake Disc Thickness [mm] : 26,0 Minimum thickness [mm] : 24,4 Brake Disc Type : Vented Surface : Coated Number of Holes : 5 MAPP code available Bolt Hole Circle [mm] : 114,3 Height [mm] : 45,5 Centering Diameter [mm] : 69,0 Inner diameter [mm] : 145,0 Bore Diameter [mm] : 12,5 Test Mark : E1 90R-02C0115/0346

0.00 EUR

Additional information

Product description Brake Disc AUDI

Outer diameter [mm] : 276,0 Brake Disc Thickness [mm] : 26,0 Minimum thickness [mm] : 24,4 Brake Disc Type : Vented Surface : Coated Number of Holes : 5 MAPP code available Bolt Hole Circle [mm] : 114,3 Height [mm] : 45,5 Centering Diameter [mm] : 69,0 Inner diameter [mm] : 145,0 Bore Diameter [mm] : 12,5 Test Mark : E1 90R-02C0115/0346
