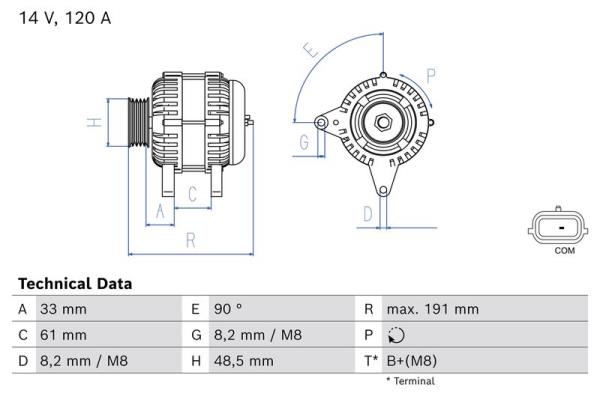

Alternator
0 986 084 410
Catalog number:
Manufacturer:
BOSCH
Exchange Part
Voltage [V] : 14
Alternator Charging Current [A] : 120
Fastening Type : Double Pivot Lever
Alternator Type : excl. vacuum pump
Distance from belt pulley to alternator [mm] : 33
Rotation Direction : Clockwise rotation
Pulleys : with freewheel belt pulley
Number of grooves : 7
Pulley dia. [mm] : 48,5
Clamp : B+(M8),PLUG(BSS2)
Plug Type ID : PL131
Length [mm] : 191
Width [mm] : 155
Height [mm] : 154
Recommended additional repairs : V-Belt/V-ribbed Belt
